Garage Door Garage Door
Powerful, Enduring and
Safe Recommend
Soft start/stop operation can extend hardware life and reduce maintenance.
Motor built-in with LED light (specific model)
Quick Setting
Safe Operation
Smooth Motion
Quality Guarantee
Back-up Battery
Easy Installation

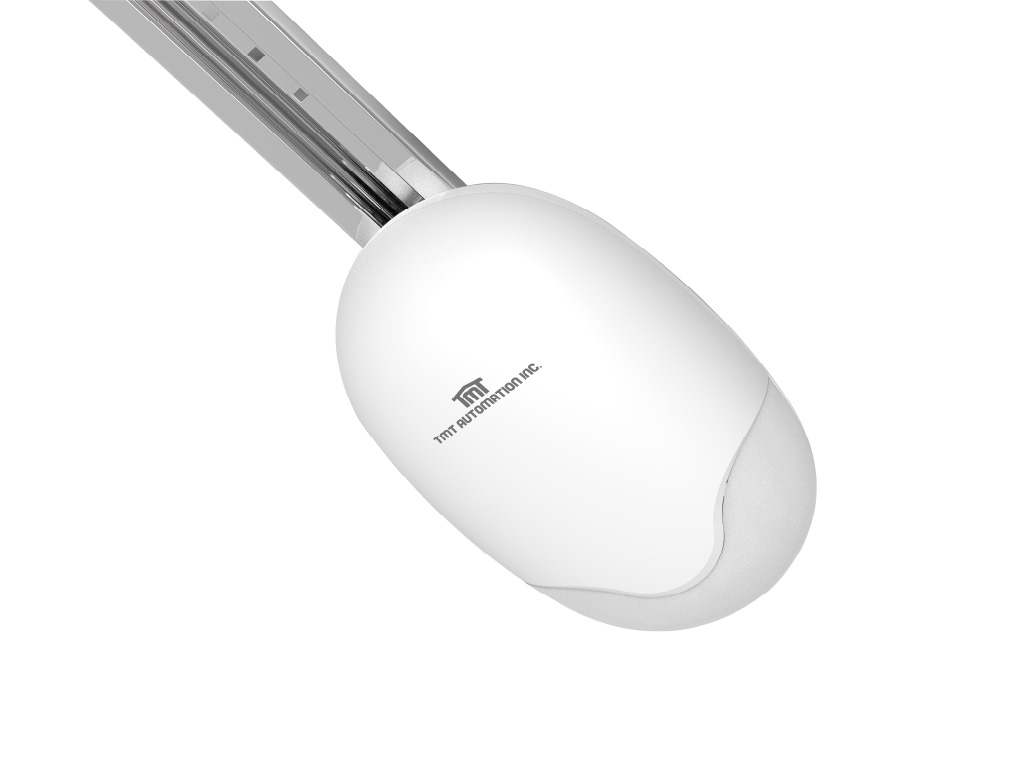

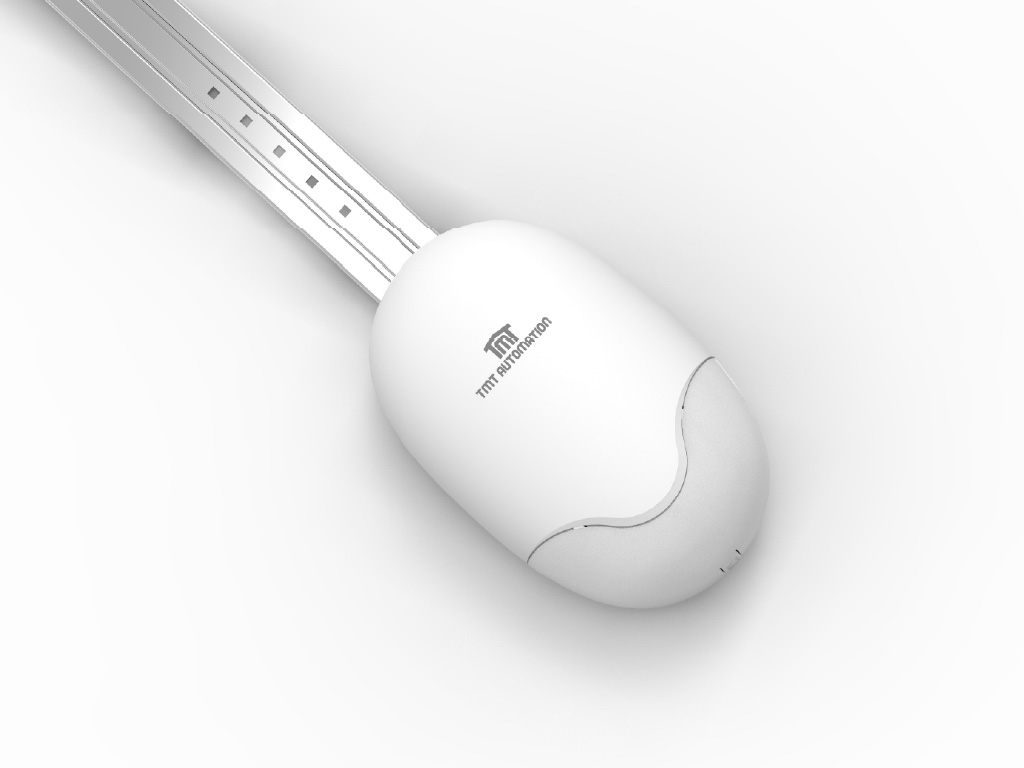

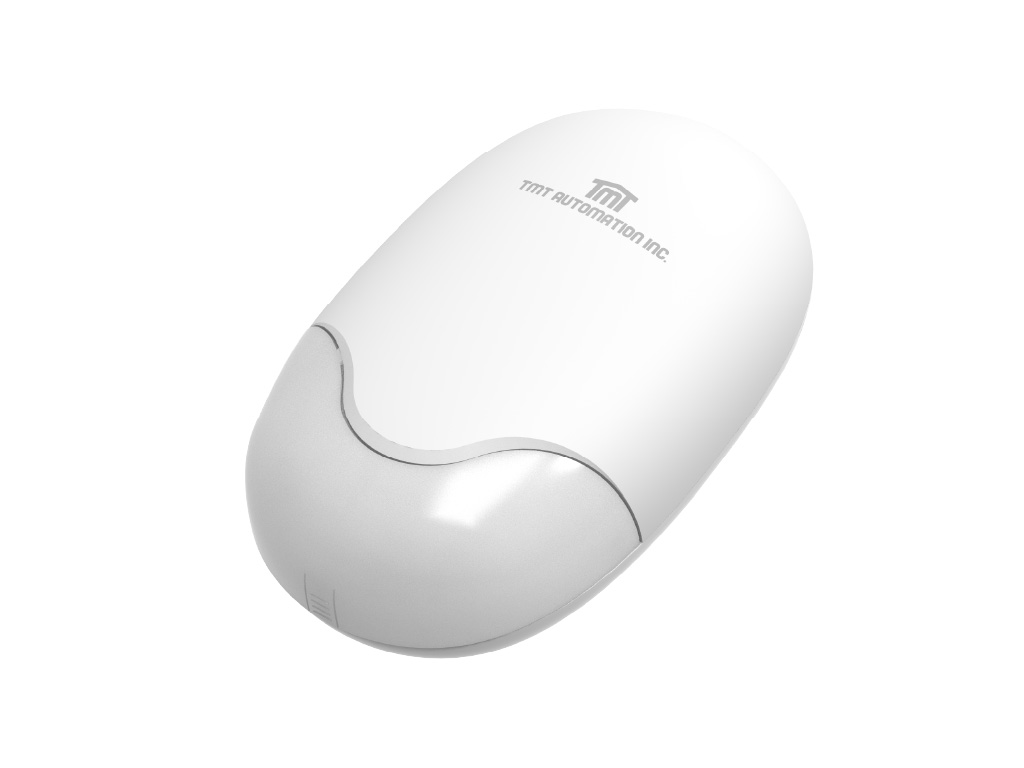

COBBLE
COBBLE 80
Max. Door Surface 10~12 ㎡
Force 800 N
COBBLE 100
Max. Door Surface 12~14 ㎡
Force 1000 N
COBBLE 120
Max. Door Surface 14~16 ㎡
Force 1200 N

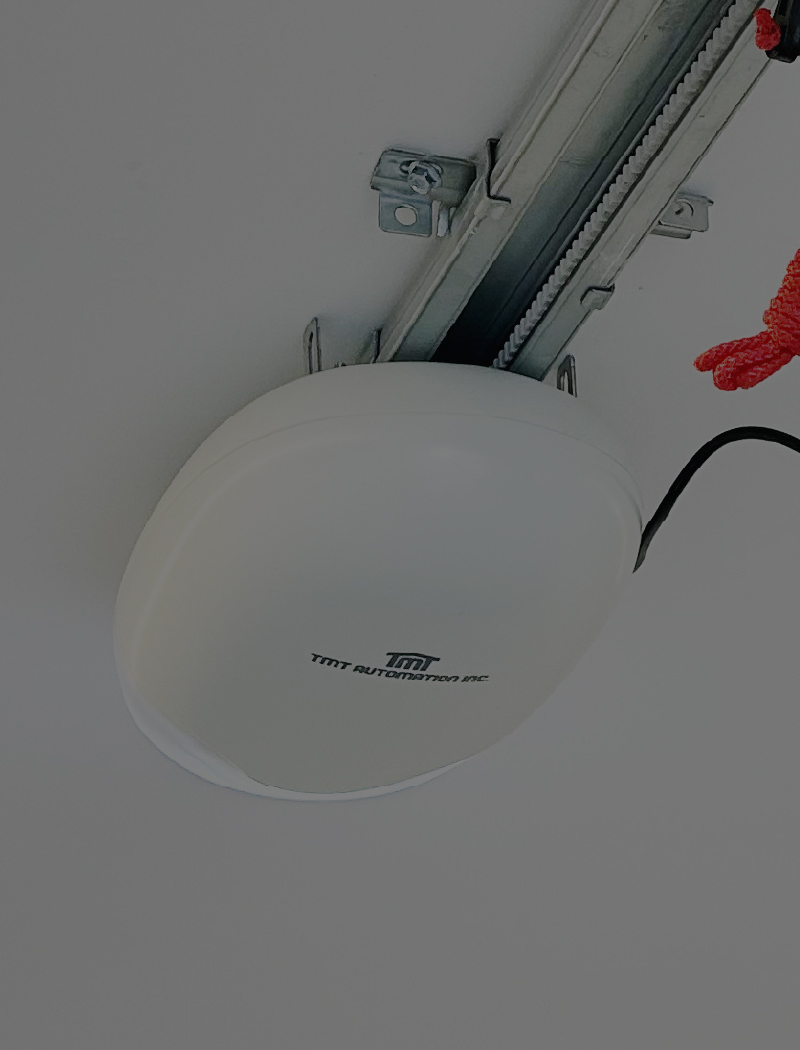

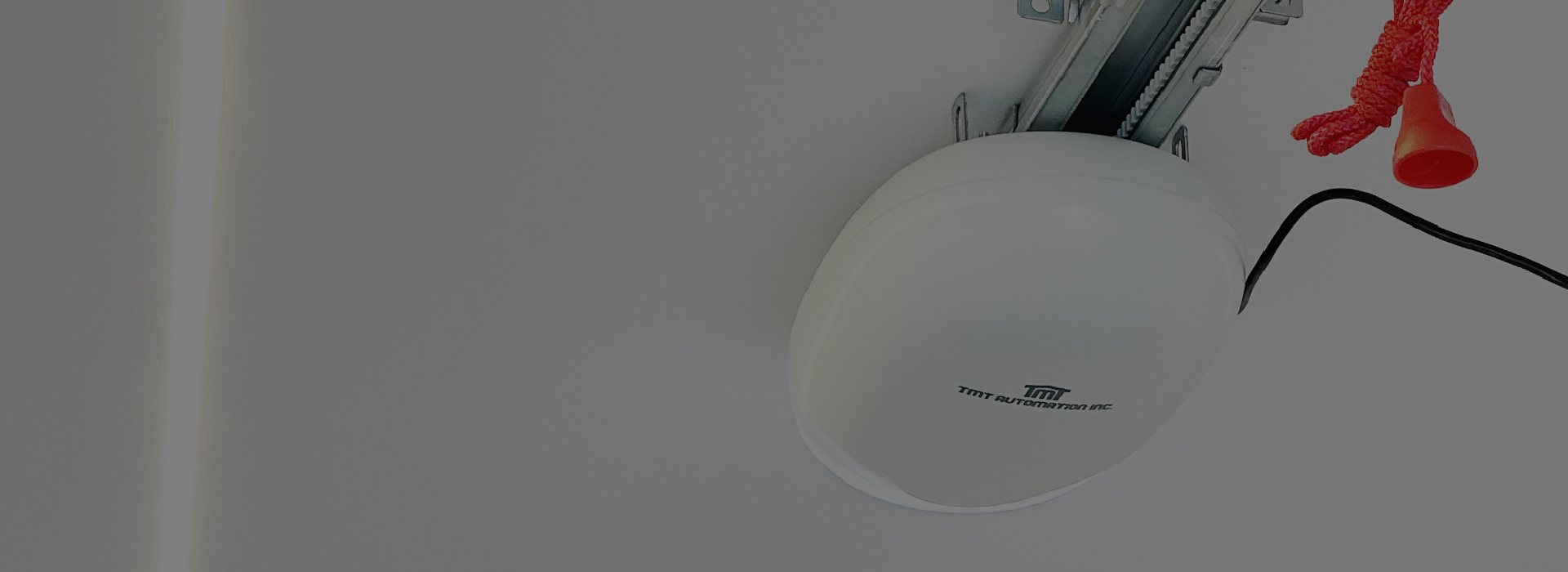

COBBLE 120 COBBLE 120
COBBLE
COBBLE 80/100/120
Features
More Convenient

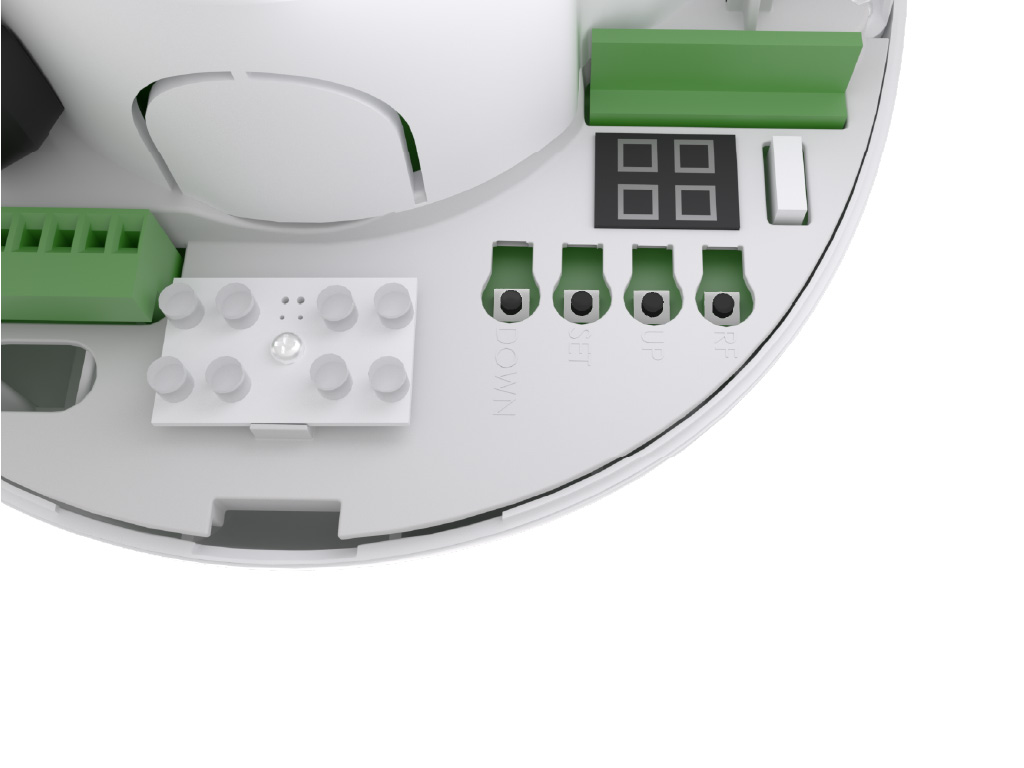

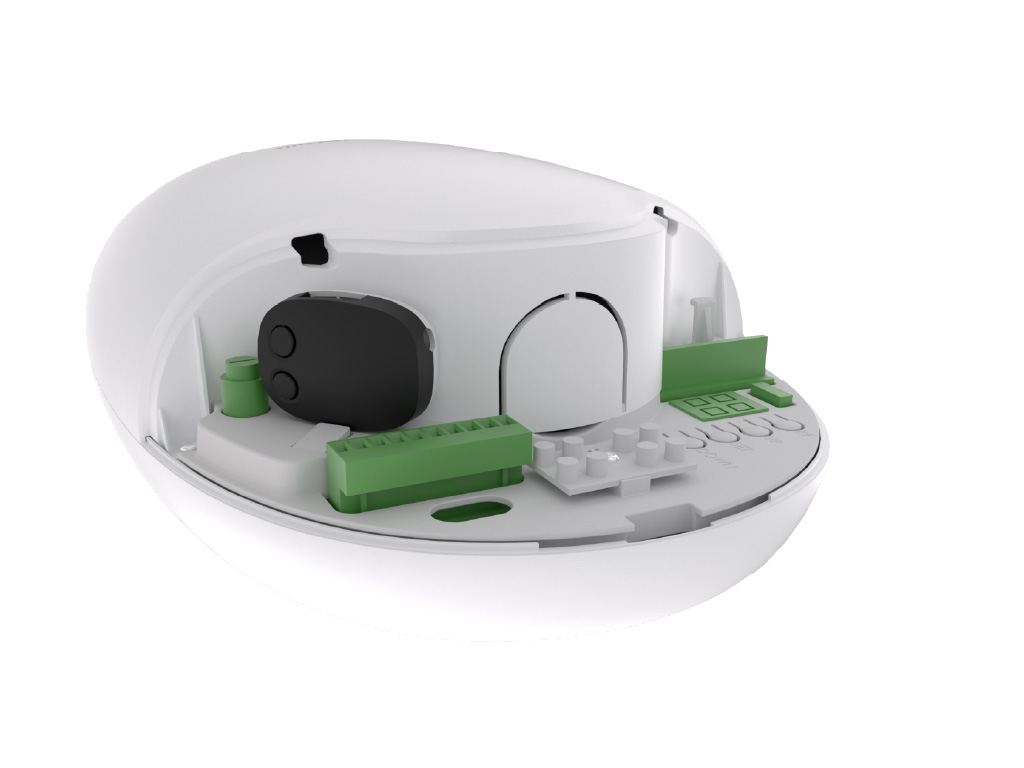

-Easy-access side control panel for convenient operation and setting.
-The LED display indicates door operation status and error notification.
-Supporting remote control learning without opening the motor cover.

Tranquillity
-Experience smooth and quiet operation by using DC motor.
-Both belt and chain rail are available for purchase.

Extra Safety
-Metal base plate makes the motor more stable during operation.
-Additional backup battery is available which allows you to open/close your door even when the power is out.
-Soft start/stop operation can extend hardware life and reduce maintenance.
-Built-in LED courtesy light for garage illumination.

Built-in Smart Control
-Remotely open and close gates with Chow! App via Bluetooth/Wi-Fi
-Programming the motor through Chow! App
-Secure your house even better with ChowCAM and ChowBELL
Specifications

COBBLE 80
COBBLE 100
COBBLE 120
Door Surface (㎡)
10~12 ㎡
14-16 ㎡
14-16 ㎡
Power Supply
AC 230 / 110 V ; 50/60Hz
AC 230 / 110 V ; 50/60Hz
AC 230 / 110 V ; 50/60Hz
Rail
Steel/ T track
Steel/ Ttrack
Steel/ T track
Rail Length(m)
3.3/3.6/3.9
3.3/3.6/3.9
3.3/3.6/3.9
Force (N)
800 N
1000 N
1200 N
Drive
Chain/Belt
Chain/Belt
Chain/Belt
Lighting System
LED
LED
LED
BASALT
BASALT 60
Max. Door Surface 8~10㎡
Force 600 N
BASALT 80
Max. Door Surface 10~12 ㎡
Force 800 N
BASALT 100
Max. Door Surface 12~14㎡
Force 1000 N
BASALT 120
Max. Door Surface 14~16㎡
Force 1200 N
BASALT 150
Max. Door Surface up to 25㎡
Force 1500 N
COBBLE 120 COBBLE 120
BASALT
BASALT 60/80/100/120/150
Features
More Convenient
-Easy-access side control panel for convenient operation and setting.
-The LED display indicates door operation status and error notification.
-Supporting remote control learning without opening the motor cover.

Tranquillity
-Experience smooth and quiet operation by using DC motor.
-Both belt and chain rail are available for purchase.

Extra Safety
-Metal base plate makes the motor more stable during operation.
-Additional backup battery is available which allows you to open/close your door even when the power is out.
-Soft start/stop operation can extend hardware life and reduce maintenance.
-Built-in LED courtesy light for garage illumination.

Built-in Smart Control
-Remotely open and close gates with Chow! App via Bluetooth/Wi-Fi
-Programming the motor through Chow! App
-Secure your house even better with ChowCAM and ChowBELL
Specifications

BASALT 60
BASALT 80
BASALT 100
BASALT 120
BASALT 150
Door Surface
8~10㎡
10~12㎡
12~14㎡
14-16㎡
≦25㎡
Power Supply
AC 230 / 110V ; 50/60Hz
AC 230 / 110V ; 50/60Hz
AC 230 / 110V ; 50/60Hz
AC 230 / 110V ; 50/60Hz
AC 230 / 110V ; 50/60Hz
Rail
Steel/ T track
Steel/ Ttrack
Steel/ T track
Steel/ T track
Steel/ T track
Rail Length(m)
3.3/3.6/3.9
3.3/3.6/3.9
3.3/3.6/3.9
3.3/3.6/3.9
3.3/3.6/3.9
Force (N)
600 N
800 N
1000 N
1200 N
1500 N
Drive
Chain/Belt
Chain/Belt
Chain/Belt
Chain/Belt
Chain/Belt
Lighting System
LED
LED
LED
LED
LED

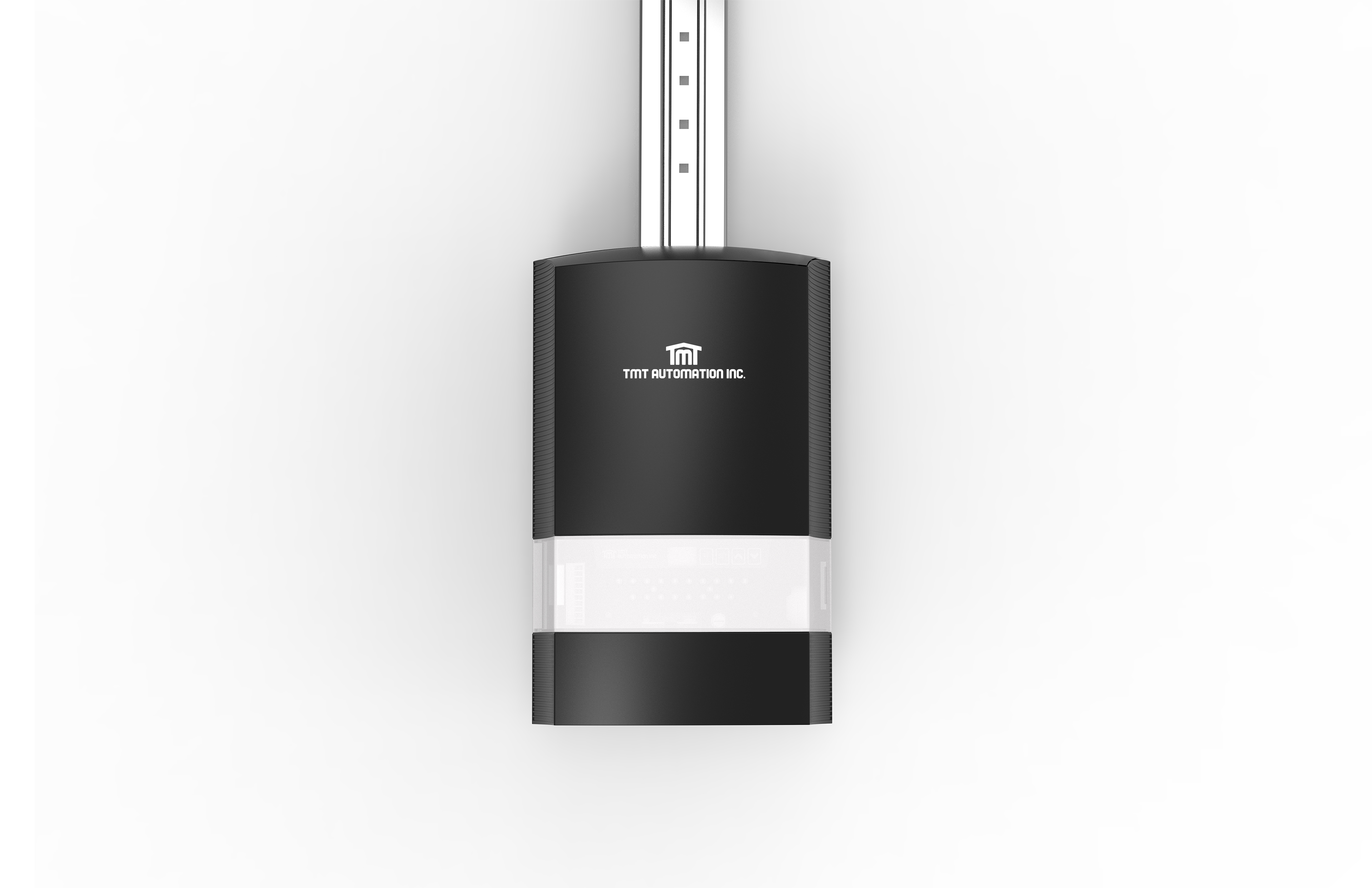

MARBLE
MARBLE 80
Max. Door Surface 10~12 ㎡
Force 800 N
MARBLE 100
Max. Door Surface 12~14 ㎡
Force 1000 N
MARBLE 120
Max. Door Surface 14~16 ㎡
Force 1200 N
COBBLE 120 COBBLE 120
MARBLE
MARBLE 80/100/120
Features
Tranquillity
-Experience smooth and quiet operation by using DC motor
-Both belt and chain rail are available for purchase

Extra Safety
-Additional backup battery is available which allows you to open/close your door even when the power is out
-Soft start/stop operation can extend hardware life and reduce maintenance
-Motor built-in with LED light

Built-in Smart Control
-Remotely open and close gates with Chow! App
-Programming the motor through Chow! App
-Secure your house even better with ChowCAM and ChowBELL
Specifications

MARBLE 80
MARBLE 100
MARBLE 120
Door Surface
10~12㎡
12~14㎡
14~16㎡
Power
80W
100W
120W
Power Supply
AC 230 / 110V ; 50/60Hz
AC 230 / 110V ; 50/60Hz
AC 230 / 110V ; 50/60Hz
Rail
Steel/Aluminum/T track
Steel/Aluminum/T track
Steel/Aluminum/T track
Rail Length(m)
3.3/3.6/3.9
3.3/3.6/3.9
3.3/3.6/3.9
Force (N)
800 N
1000 N
1200 N
Speed(mm/sec)
140
1404
140
Drive
Chain/Belt
Chain/Belt
Chain/Belt
Lighting System
LED
LED
LED

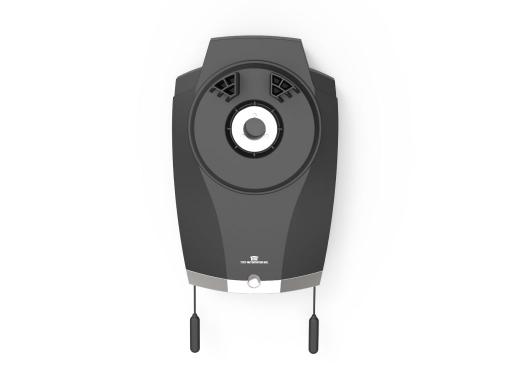

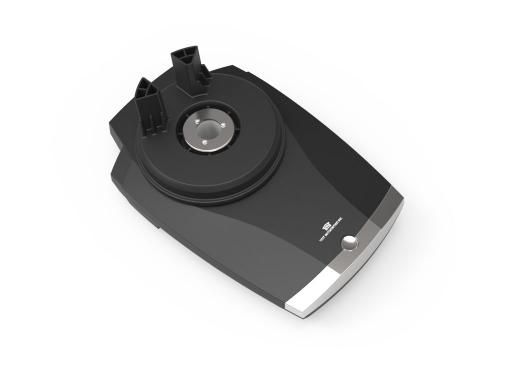

MAX
Max
Max. Door Surface 18㎡
Force 650N
COBBLE 120 COBBLE 120
MAX
MAX
Features
Extra Safety
-Additional backup battery is available which allows you to open/close your door even when the power is out
-Soft start/stop operation can extend hardware life and reduce maintenance

Built-in Smart Control
-Remotely open and close gates with Chow! App
-Programming the motor through Chow! App
-Secure your house even better with ChowCAM and ChowBELL
Specifications

MAX
Door Surface
18㎡
Power (W)
120 W
Power Supply
AC 230 / 110V ; 50/60Hz
Force (N)
650 N
Speed(mm/sec)
35 mm
